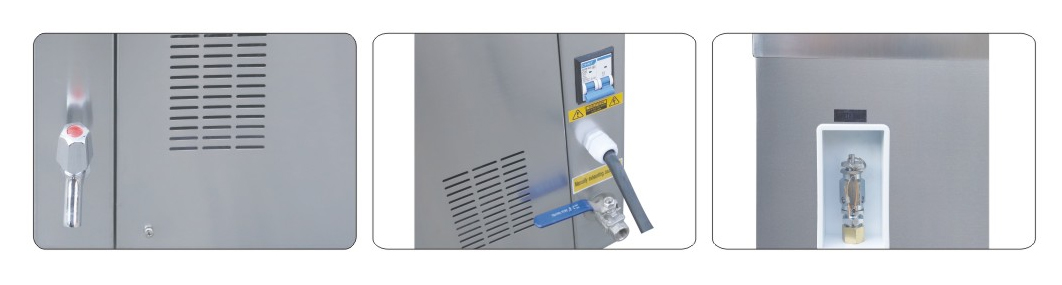

Mechanical Type Vertical Pressure Steam Sterilizer has Safe protection of water lacking, to prevent operation when there is a lack of water. Water is a critical component in steam sterilization, and running the sterilizer without sufficient water can lead to equipment damage or failure. Double-scale indication pressure gauge, This allows operators to monitor and control the pressure levels during the sterilization process. Having two scales may indicate pressure readings in different units for user convenience. Fully stainless steel structure. These features collectively suggest that the Mechanical Type Vertical Pressure Steam Sterilizer is designed with safety and reliability in mind.
● Indicator light indicates working state.
● Over-temperature & over- -pressure auto-protection device.
● Double scale indication pressure gauge.
● Safe protection of water lacking.
● With the below exhaust structure, which is convenient to exhaust the cold air.
● Automatically shut off with beep reminding after sterilization.
● Fully stainless steel structure.
● Easy to operate, safe, and reliable.
● With two stainless steel sterilizing baskets.
MODEL/Technical Data | LS-35LJ | LS-50LJ | LS-75LJ | LS-100LJ | LS-120LJ | LS-150LJ | |
Chamber volume | 35L | 50L | 75L | 100L | 120L | 150L | |
Φ318×450mm | Φ340×550mm | Φ400×600mm | Φ440×650mm | Φ480×660mm | Φ510×740mm | ||
Working pressure | 0.22Mpa | ||||||
Working temperature | 134℃ | ||||||
Max. working pressure | 0.23Mpa | ||||||
Heat average | ≤±1℃ | ||||||
Timer range | 0-60min | ||||||
Temperature adjust range | 105-134℃ | ||||||
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 6KW/AC220V 50HZ | |||
Overall dimension(mm) | 480×460×850 | 520×500×980 | 560×560×980 | 590×590×1080 | 600×640×1140 | 670×690×1130 | |
Transport dimensio(mm) | 540×540×970 | 580×580×1090 | 610×610×1110 | 640×640×1170 | 690×690×1240 | 730×730×1230 | |
G.W/N.W | 61Kg/46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 116Kg/100Kg | 130Kg/111Kg |
