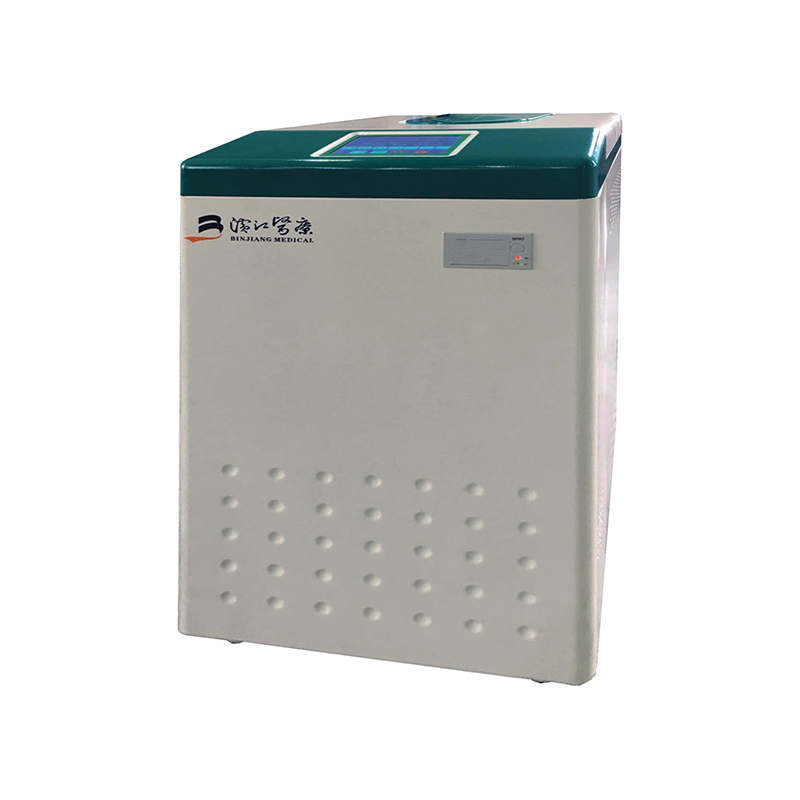

LS Series Vertical Pulse Vacuum Steam Sterilizer

LS Series Vertical Pulse Vacuum Steam Sterilizer

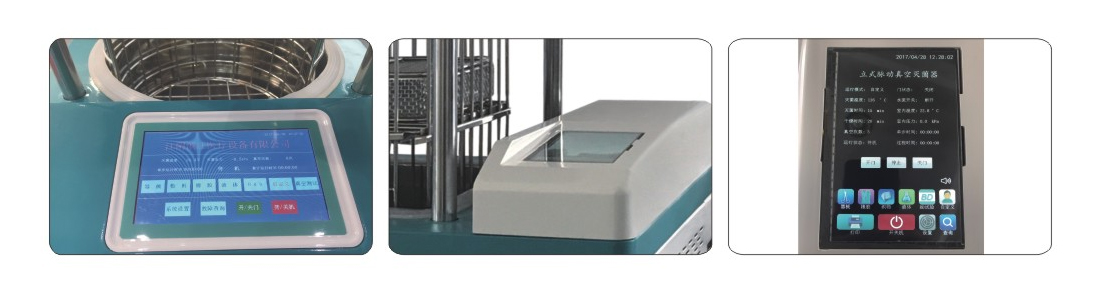

● 7" capacitive touch screen, fully automatically controlled, easy to operate on.
● Elevating type door, which is more convenient to place and fetch the articles from the autoclave.
● The whole procedure from the water inlet, pulse vacuum, heat, sterilizing, drainage, exhausting to vacuum drying, which is all automatically by one-key operation.
● Pulse vacuum, the limit is -0.080MPa, which ensure the sterilizing more completely.
● Separated steam generator, which is more energy-saving compared to normal heating and prevents the sterilizing articles from being oxidized.
● There are several programs loaded in the autoclaves for different requirements of different articles.
● With the PT-TT testing port, easy to run the testing.
● Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20 μm, which ensures the air is sterile and prevents contamination.
● Steam-water inner circulation system: no steam discharge and the environment for sterilizing will be clean and dry.
Submit Application
Characteristics
Vacuum Pump Motor Temperature Sensor
Solenoid Valve Filter Pressure Sensor


Technical Data
MODEL LS-60SV LS-80SV LS-100SV LS-120SV
0Chamber volume 60L
Φ396×490mm
80L
Φ396×650mm
100L
Φ480×560mm
120L
Φ480×660mm
The height after rising(mm) 1310 1590 1475 1565
Working pressure 0.22MPa
Working temperature 134℃
Heat average ≤±1℃
Timer range 0~99min
Temperature adjust range 105~134℃
Power Steam generator: 3KW
Dry blanket: 2.4KW/AC220V .50Hz
Steam generator: 3.6KW
Dry blanket: 2.4KW/AC220V .50Hz
Overall dimension(mm) 686×556×913 686×556×1035 840×600×970 840×600×1060
Transport dimension(mm) 786×656×1013 786×656×1135 940×610×1000 940×610×1075
G.WIN.W 210kg/180kg  230kg/200kg 300kg/270kg 325kg/295kg
