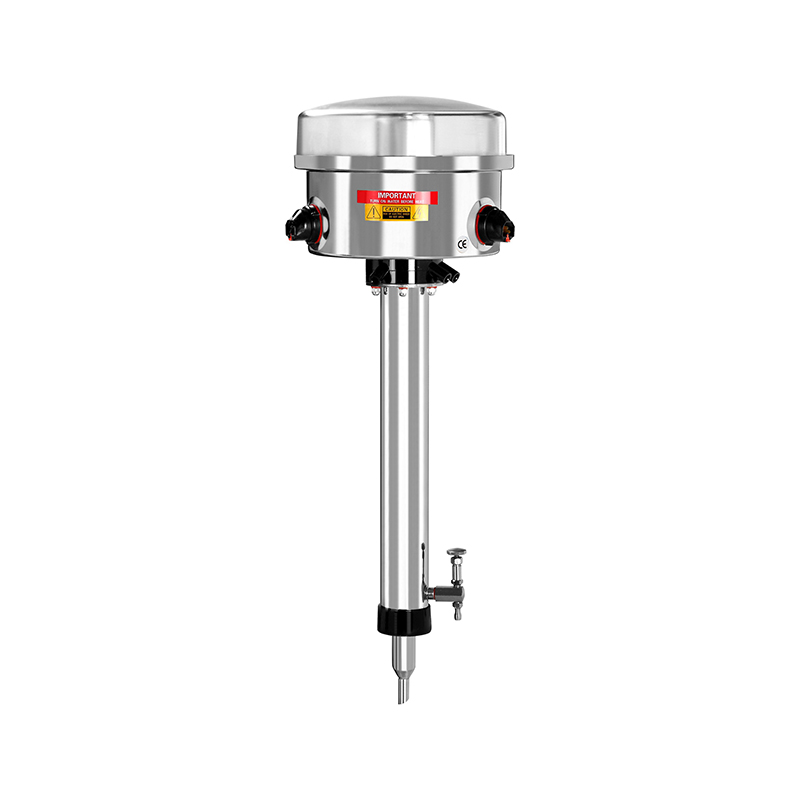

Wall Mounted Electric Distilled Water

Wall Mounted Electric Distilled Water

The device can be mounted on the wall, and produce the distilled water at a lower cost, continuously, automatically, and effectively.
Operation: The tap water enters the bottom of the condense pipe circle along with the pipe and enters the vaporize pan at the end, the height of the overflow is pre-set. The steam in the pipe goes down and meat the water goes up, thus making the gas in it.
The steam produced in the vaporized pan reached the condensing pipe through the guide plate. The guide plate be installed as can change direction three times before the steam enters the condensing pipe. This way can protect tap water in distilled water, the tap water brings in distilled water is the main cause of chemical of distilled water. If the working is normal, it can get the water of fyrogen-free. The vaporize, condense, overflow and guide plate inner is made of stainless steel. The cover outside and the cover of the guide plate are made of heat-resistant borosilicate glass and all the electric elements with safety cut-off switches.
Submit Application
Characteristics


MODEL/Technical Data TS-3.5~4.5L/h
Power AC220V~240V/50Hz~60Hz
Output 3.5~4.5L/h
Consumption 1.5Kw×2
Net weight 7kg/set
Gross weight 8kg/set 17kg/2set
Dimension 740×400×140mm/set 760×420×310mm/2 set
Capacity of pan 5.5liter
PH. Value 5~6
